  Micro Sun Led Clamp Light




  •   feature
  •   available Color
  •   Sizes
  • Replacement part
  •   Installation



• Ideal for Fresh and Saltwater Environments
• Nano Tank Light
• 0.25 Watt LED Lamps
• Water Resistant Construction
• Sleek Aluminum Hood with Heat Removal Technology
• Adjustable Arm made of Durable High Impact Plastic
• Low Voltage UL Listed Transformer

Glass Thickness:
Maximum glass thickness ½”
¼” glass use the suction cup provided to secure fixture to the aquarium
3/8” or ½” glass remove the suction cup provided to secure fixture to the aquarium

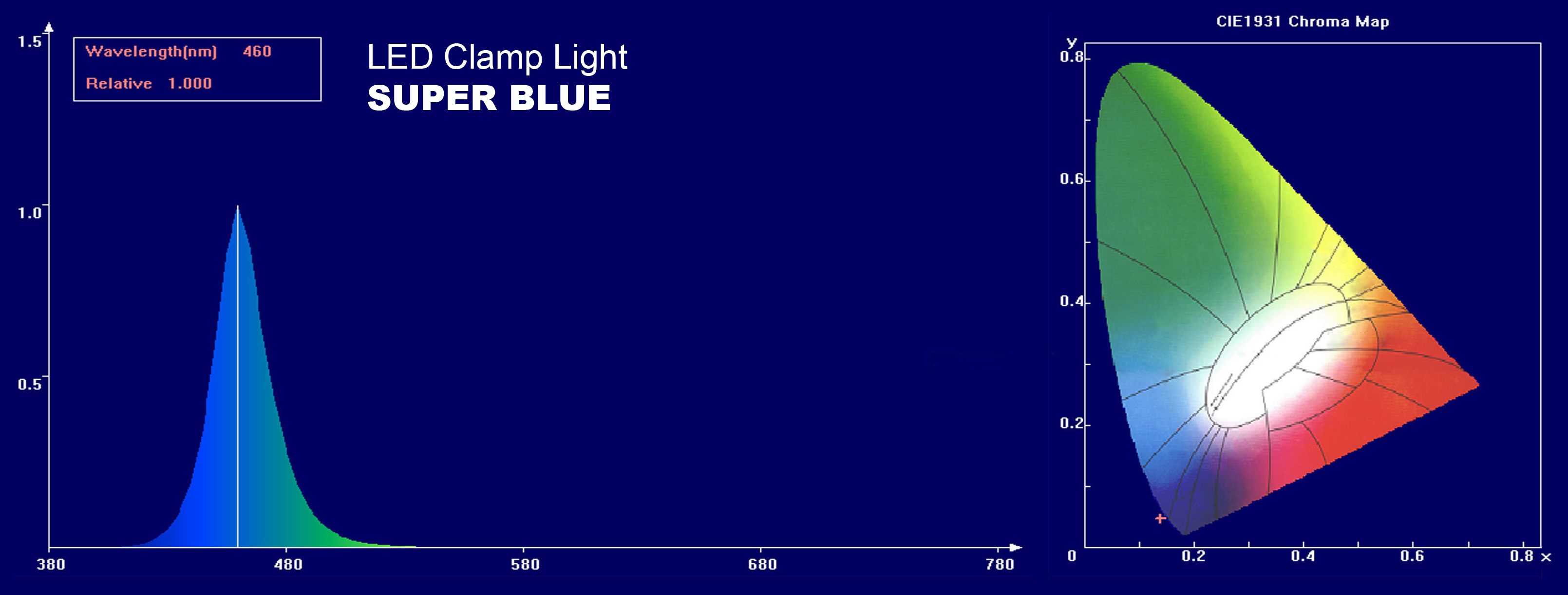

Spectrum Graph (click on image to enlarge)








MODEL # DESCRIPTION NO. of LEDs DIMENION
(L x W x H)
DIMENSION
w/o arm
(L x W x H)
UPC NO.
01101
6” 3-watt Super Blue Super
Micro Sun LED Clamp Light
12x Super Blue 6" x 9" x 6" 6" x 4" x 0.94"

805552011012

01102 6” 3-watt Daylight
Micro Sun LED Clamp Light
12x 10000k Daylight 6" x 9" x 6" 6" x 4" x 0.94" 805552011029
01103 6” 3-watt Super Blue & Daylight
Micro Sun LED Clamp Light
8x Super Blue
4x 10000k Daylight
6" x 9" x 6" 6" x 4" x 0.94" 805552011036
01107 12” 6-watt Super Blue
Micro Sun LED Clamp Light
24x Super Blue 12" x 9" x 6" 12" x 4" x 0.94" 805552011074
01108 12” 6-watt Daylight
Micro Sun LED Clamp Light
24x 10000k Daylight 12" x 9" x 6" 12" x 4" x 0.94" 805552011081
01109 12” 6-watt Super Blue & Daylight
Micro Sun LED Clamp Light
16x Super Blue
8x 10000k Daylight
12" x 9" x 6" 12" x 4" x 0.94" 805552011098

Power Supply 3w 12V=0.2A (200mA)
For All Wave Point 6" LED Clamp Light
Model # 01428
UPC # 805552014280

Power Supply 6w 12V=0.3A (300mA)
For All Wave Point 12" LED Clamp Light
Model # 01429
UPC # 805552014297


Click Here to download instruction for installation (PDF)

If you have problem opening PDF file from Internet Explorer, please try Firefox or right click on the link and select Save Target As and save the PDF file in your computer.
